AT9K – Hydraulic Alignment Single Tool and Pump Kit
The AT9K is a Hydraulic flange alignment tool designed for medium and large flanges that is used to correct: • linear misalignment (when the axis of the two flanges are not aligned). • rotational misalignment (when the axis of the flanges are aligned but the bolt holes are not). The AT9K can produce a maximum reaction alignment force of 9 tons when the maximum hydraulic pressure of 10,000psi is applied to the tool.

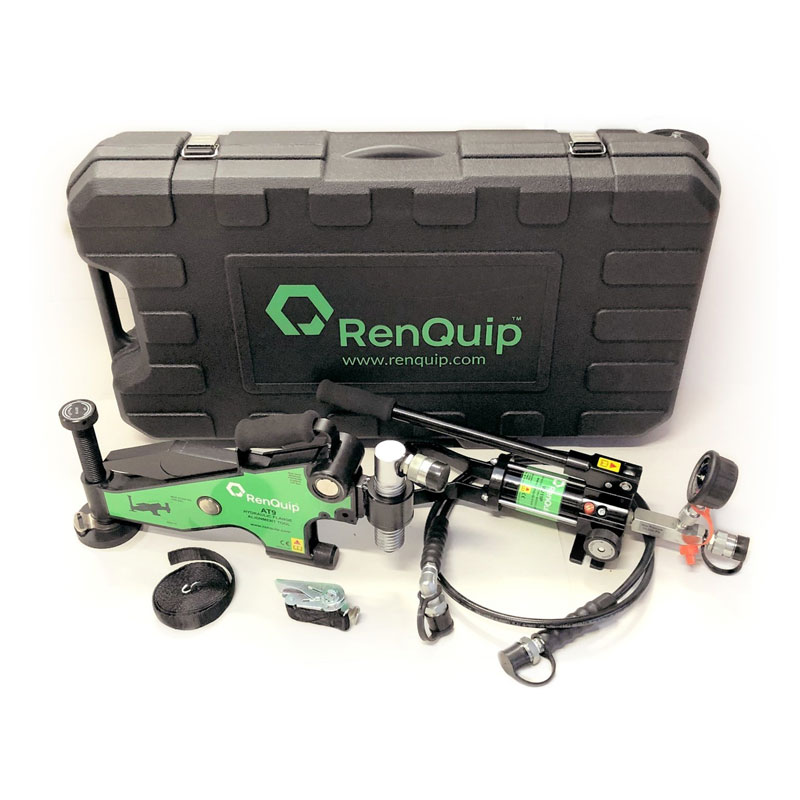

Kit Contents

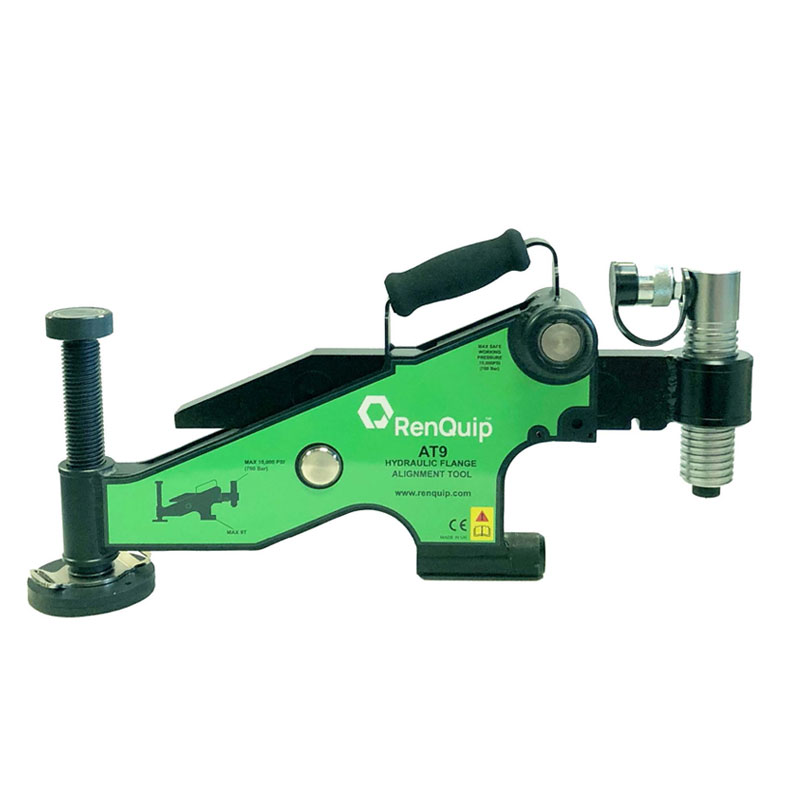

- 1 x AT9 Tool
- 1 x 10,000psi Hydraulic Sealed Hand Pump
- 1 x 10,000psi Hydraulic Hose 2.1M long
- 1 x 10,000psi Hydraulic Gauge
- 1 x Ratchet and Strap
- 1 x Instruction Manual
- 1 x Robust moulded carry case
Description
Benefits & Features
- Tool weight 32 lbs
- No external anchor points or rigging required.
- Can be used to prevent misalignment during flange joint maintenance.
- Bearings rated to provide overload warning.
- 100% Load/Pressure tested and certified.
- Prevents gasket pinching during flange joint assembly.
- High durability High Quality low Maintenance design.
- Supplied with pressure rated and capacity matched pump for safety.
- Robust Moulded Case for easy transportation and storage.
