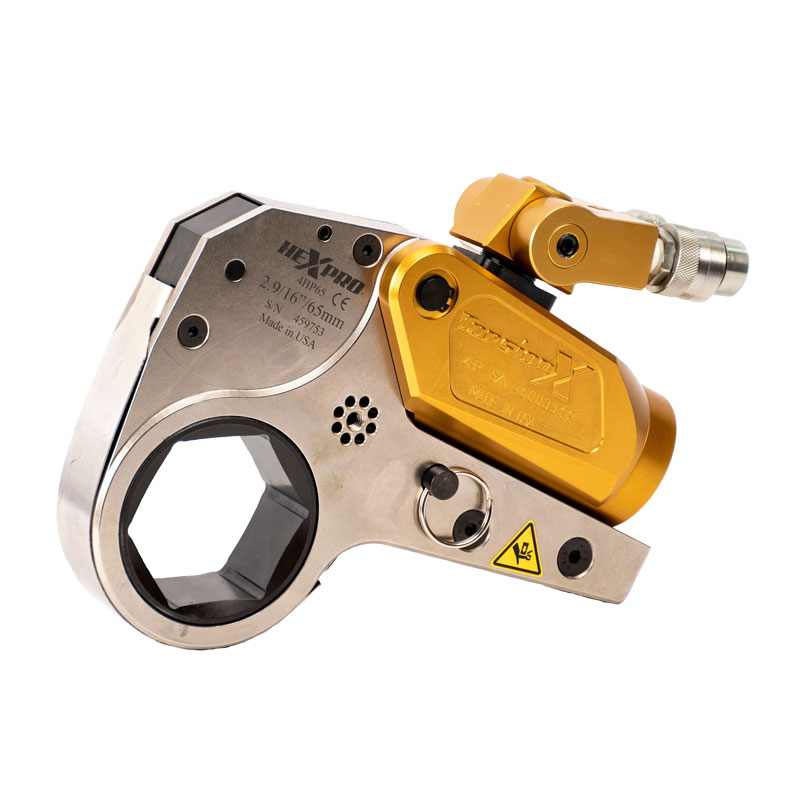

Hexpro – Low Profile Hydraulic Torque Wrench
The versatile HexPro™ Series Hydraulic Torque Wrench supports an extensive range of interchangeable hexagon ratchet links that deliver a torque range of 150 ft-lbs. to 30,000 ft-lbs. They deliver precision torque during bolt makeup and maximum torque during bolt breakout. Ratchet links are interchangeable with some other major brand tools.
Hexpro Series Features:
- Compact Design
- 1 Year Warranty
- Multi-Directional Swivel Assembly
- Anti-Jam Torque Release Lever
- Best in Industry Strength-to-Weight Ratio
Accessories:

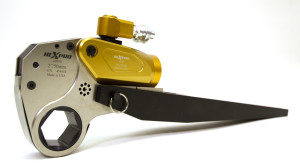

- Alco Arm
- Reaction Pad
- Reducer Bushings
- Stack Socket
Description

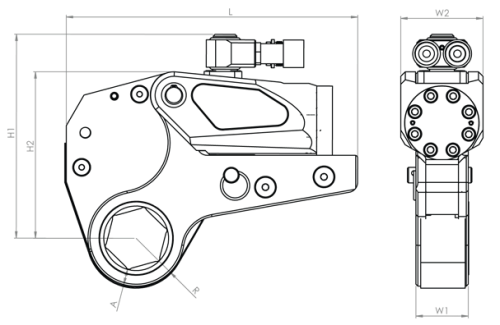

| Model | 2HP | 4HP | 8HP | 14HP | 30HP |
|---|---|---|---|---|---|
| Torque (Ft.Lbs.) | 162-1,714 | 439-4,500 | 762-8,100 | 1,245-13,443 | 2,846-28,861 |
| Hex Sizes | 3/4" to 2-3/8" | 1-5/16" to 3-1/8" | 1-1/2" to 3-15/16" | 2" to 4-5/8" | 3-1/8" to 6-7/8" |
| Power Head | 3 lbs. | 5 lbs. | 8 lbs. | 13 lbs. | 27 lbs. |
| Ratchet Link | 4 lbs. | 9 lbs. | 16 lbs. | 26 lbs. | 70 lbs. |
| L | 7.32" | 9.72" | 11.87" | 14.24" | 17.05" |
| H1 | 5.26" | 7.85" | 8.43" | 9.41" | 12.40" |
| H2 | 4.12" | 5.71" | 6.95" | 8.00" | 11.22" |
| W1 | 1.25" | 1.65" | 2.08" | 2.52" | 3.35" |
| W2 | 2.00" | 2.60" | 3.27" | 3.88" | 5.16" |
| A | .390" | .580" | .650" | .740" | 1.010" |
| R | 1.054"-1.766" | 1.397"-2.393" | 1.882"-2.944" | 2.34"-3.416" | 3.037"-4.559" |
HEXPRO ACCESSORIES

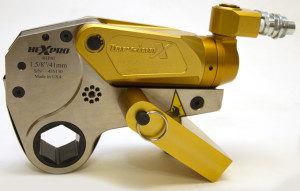

HEXPRO REACTION PAD

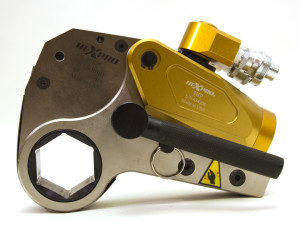

HEXPRO HANDLE
