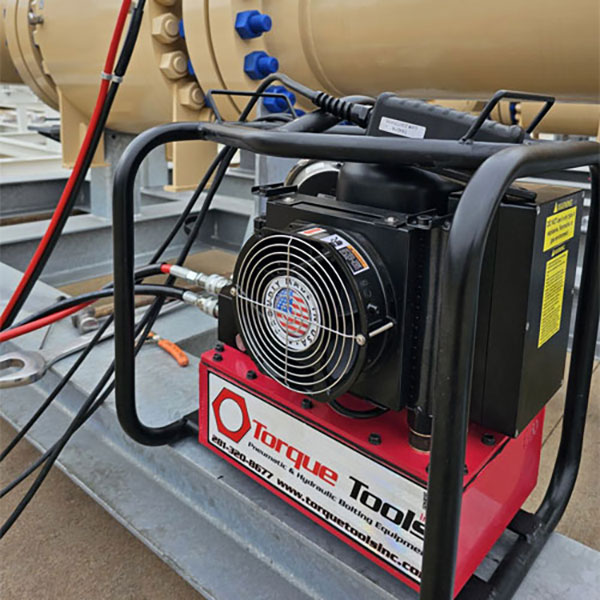

PWRPAX-115
The PWRPAX Series Hydraulic Torque Wrench Pumps are built for durability, ensuring high performance even in demanding environments. Both the Electric and Air PWRPAX are three-stage pumps that offer 2-port and 4-port manifolds with heavy-duty roll cages.
110 volts or 220 volts @ 50/60 hz
110V 13.7 amps – 220V 6.75 amps
1.5 HP
3450 RPM
Maximum Oil Flow: 610 in³/min, 10.2L/min
Reservoir Capacity: 2 Gal/7.57 L
Overall Dimensions:
- 18″ x 15.50″ x 18.25″
- 45.7 cm x 39.4 cm x 46.4 cm
Weight (without oil): 75 lbs/35 kg
(Available in 4 Port)
PWRPAX-115 Features
- Runs Up to 4 Hydraulic Torque Wrenches
- Three-Stage High-Performance Pump
- External Adjustable Pressure Regulator
- Heavy Duty Roll Cage
- Remote Control Assembly
- Cooling System
- 10,000 PSI / 690 BAR
- Hour Meter
- Pressure Gauge (analog)
Description
Accessories
Hydraulic Hose
- Flexibility
- Vibration dampening
- Durability
- Abrasion resistance
- Chemical resistance
- Non-aging
- UV resistance
- Light weight
- Smooth cover

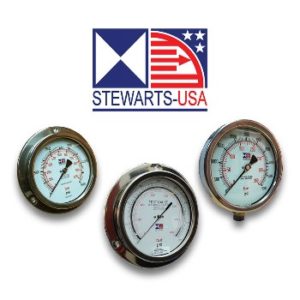

Pressure Gauges
- Case pressure-relief grommet 9Topside on liquid-fillable models, Backside on dry models).
- White-painted aluminum dial, Black printed figures.
- Black-anodized aluminum pointer (Micrometer adjustable is standard on 4″ & 6″ dial sizes).
- AISI 316 Stainless Socket & Element.
- AISI 316 Stainless Steel Case & Bayonet Ring (Standard).
- IP Class=IP66. Operating temperature range= -4°F to 140°F without loss of accuracy.
- Orifice Restrictor Screw

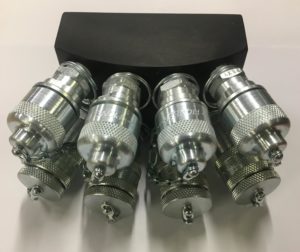

4 Port Manifold
Convert your existing single port pump to a 4 port pump in order to operate 4 tools at one time.
