RAD Nose Extensions
Designed with flexibility in mind – nose extensions for all your hard to reach applications!

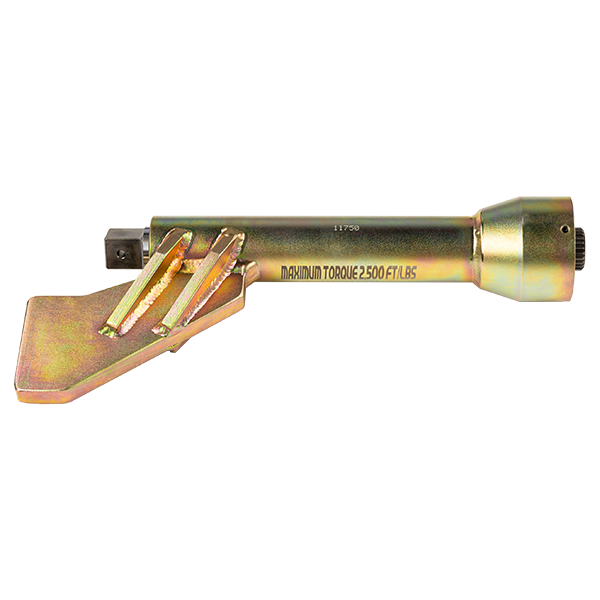

- A “fixed” Nose Extension has a paddle welded onto the end of the Nose Extension.
- A Nose Extension without a reaction arm allows for more flexibility. Please note that the reaction arm is not included and must be ordered separately.
Description
| Part Number | Model | Dim A | Dim B | Dim C | Dim D | *Standard Arm |
|---|---|---|---|---|---|---|
| 14195 | RAD 10GX | N/A | 12.75" | 1.75" | N/A | 11842 |
| 14200 | RAD 10GX | N/A | 15.75" | 1.75" | N/A | 11842 |
| 14205 | RAD 10GX | N/A | 18.75" | 1.75" | N/A | 11842 |
| 18185 | RAD 15DX | N/A | 13.75" | 2.0" | N/A | 20153 |
| 19058 | RAD 15DX | N/A | 15.75" | 2.0" | N/A | 20153 |
| 19059 | RAD 15DX | N/A | 18.75" | 2.0" | N/A | 20153 |
| 10259 | RAD 1800NG | 5.0" | 12.7" | 2.0" | 3.5" | WELDED |
| 10257 | RAD 1800NG | 5.0" | 16.0" | 2.0" | 3.5" | WELDED |
| 10258 | RAD 1800NG | 5.0" | 18.0" | 2.0" | 3.5" | WELDED |
| 12096 | RAD 25GX | 5.0" | 13.0" | 2.0" | 3.25" | WELDED |
| 12061 | RAD 25GX | 5.0" | 16.0" | 2.0" | 3.25" | WELDED |
| 12097 | RAD 25GX | 5.0" | 18.5" | 2.0" | 3.25" | WELDED |
| 11750 | RAD 34GX | 5.6" | 12.5" | 2.0" | 3.4" | WELDED |
| 11751 | RAD 34GX | 5.6" | 15.5" | 2.0" | 3.4" | WELDED |
| 11752 | RAD 34GX | 5.6" | 18.5" | 2.0" | 3.4" | WELDED |
