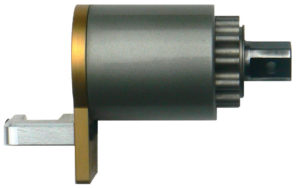

RAD SDM Low Profile Multipliers

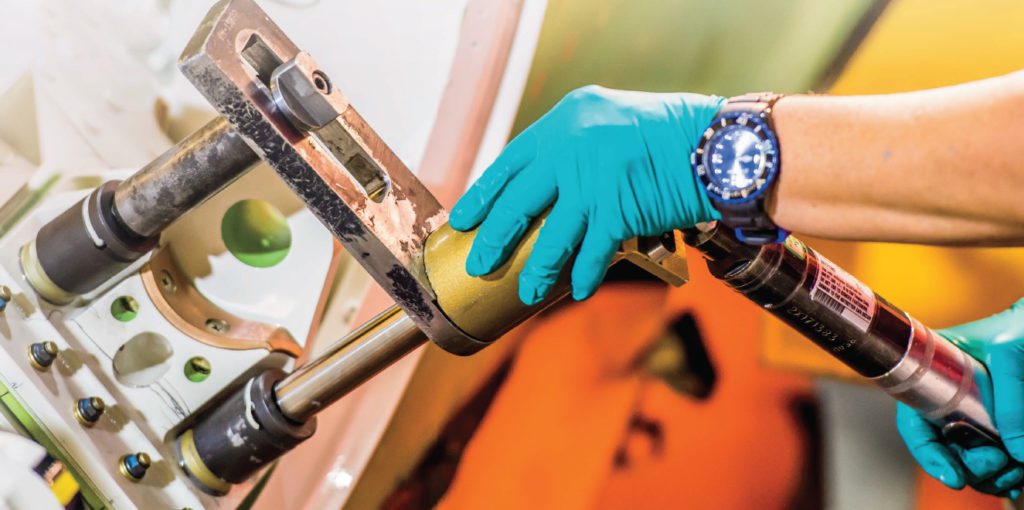

For applications where tool access to the bolt is limited, the RAD SDM Low Profile series multipliers can provide you a solution. Based on RAD’s long experience with planetary gear reduction technology, the SDM Low Profile gearbox was designed for confined applications in multiple industries including aerospace. The RAD SDM Multipliers are to be combined with your chosen nut runner.
Description
**Does not include a nut runner or reaction arm.

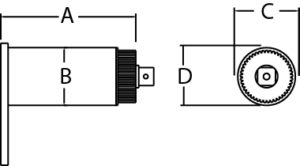

| MODEL | RATIO | INPUT | OUTPUT | TORQUE (FT.LBS) | DIMENSION A | DIMENSION B | DIMENSION C | DIMENSION D |
|---|---|---|---|---|---|---|---|---|
| SDM 400 | 82:1 | 1/4″ | 3/4″ | 400 | 3.55″ | 2.5″ | 2.5″ | 3.71″ |
| SDM 400 | 144:1 | 1/4″ | 3/4″ | 400 | 3.55″ | 2.5″ | 2.5″ | 3.71″ |
| SDM 10 | 128:1 | 3/8″ | 3/4″ | 1000 | 4.35″ | 2.5″ | 2.5″ | 3.71″ |
| SDM 10 | 101:1 | 3/8″ | 3/4″ | 1000 | 4.35″ | 2.5″ | 2.5″ | 3.71″ |
